$1,095.00

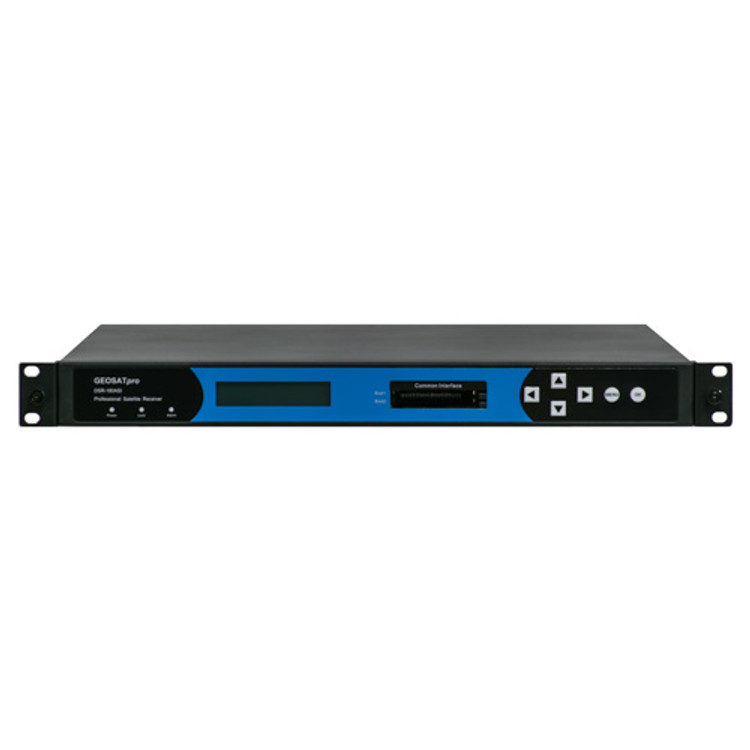

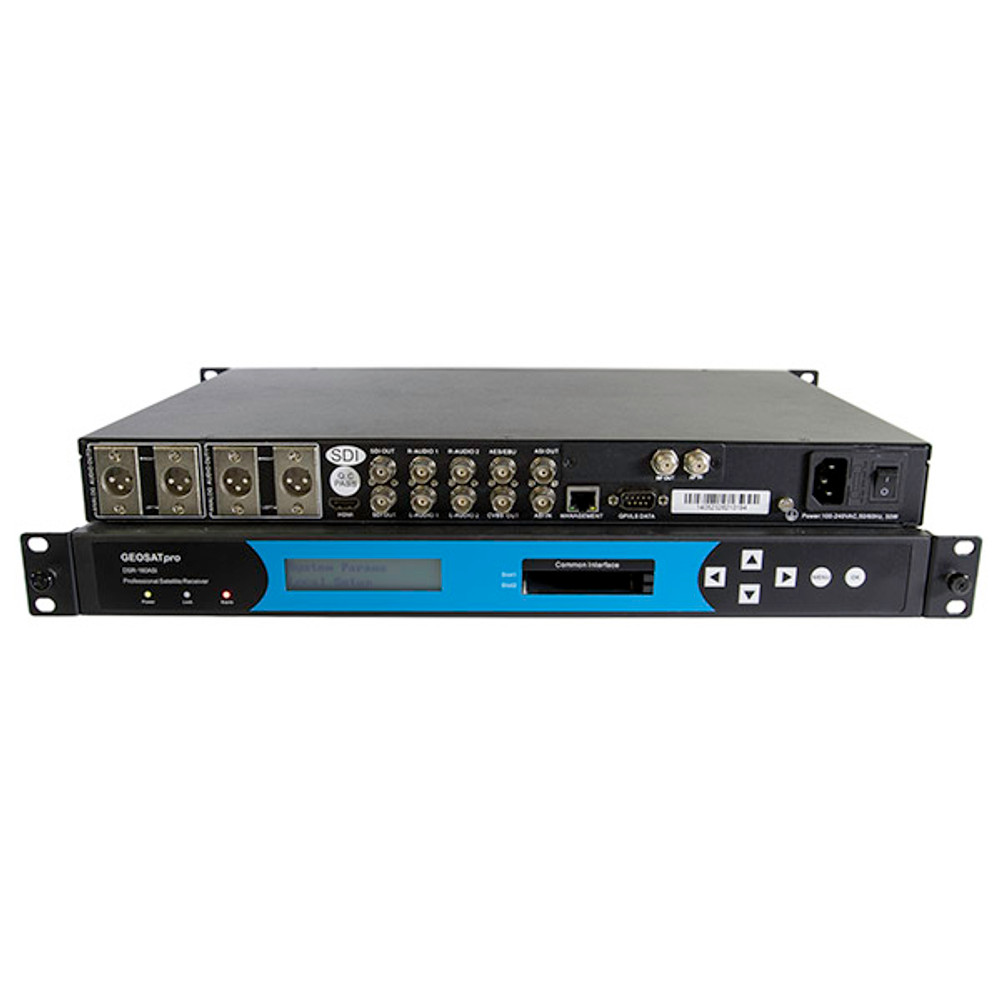

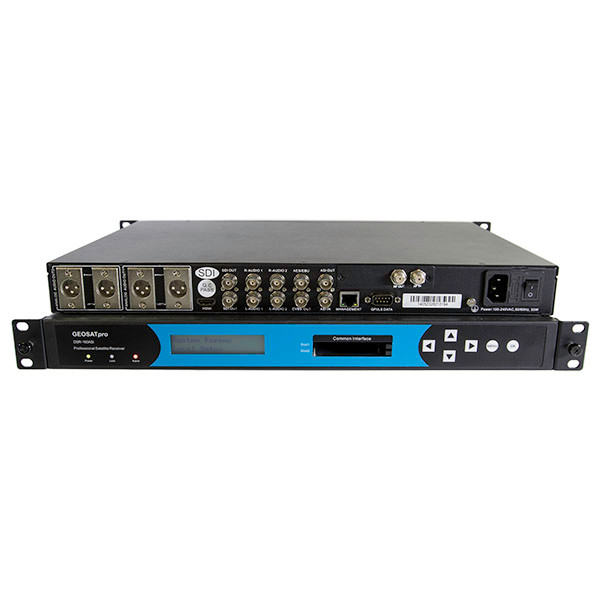

RECEIVER - GEOSATpro DSR160ASI RACK MOUNT IRD WITH SDI AND ASI

Add to Wishlist
Current Stock:
UPC:
size: 21.00 W × 16.00 H × 5.00 L
Weight: 12.00 LBS
Shipping Cost: $39.50 (Fixed Shipping Cost)
Recording Memory Options *
Warranty Options *
Dish Mount Option *
Shipping Options *

The GEOSATpro DSR160ASI IRD integrated receiver decodes both high definition and standard definition video. The DSR160ASI is capable of receiving signals from variable program sources including DVBS, S2, DVB-ASI, QPSK, 8PSK and support for 4:2:0 chroma. Output interfaces include CVBS, HDMI, AES/EBU HD/SDI and ASI. - Please choose upgraded DSR180IP or DSR180QAM model to include additional features.

The DSR160ASI has 2 common interface slots capable of decrypting multiple channels. With the LAN control and monitoring function by remote web-based management and front panel controls, this user-friendly decoder is ideal for signal conversion and distribution for SD or HD-based digital video head-end system.

Discounts Available for broadcasters and system integrators on quantity purchases. Please contact us to quote your project.

Features:

  • Fully compliant with H. 264/MPEG-4-AVC HP@L4, MPEG-2 MP@HL, MPEG-2 MP@ML and DVB-S/S2, support for 4:2:0 chroma and ASI transport stream input and output
  • 2 Common Interface (CI) for descrambling major CAS including Irdeto, Viaccess, Conax, Mediaguard, Nagravision, Comvenient / Betacrypt, CTI, etc.
  • Compatible with Multi-decrypt CI Modules
  • Program filtering support
  • Closed Captioning via EIA-608, VBI teletext, EBU subtitle and DVB subtitle processing (note full EIA-708 support available in DSR180ASI model)
  • Support NTSC, PAL and SECAM
  • Composite CVBS output
  • HDMI output
  • AES / EBU Digital Audio output
  • HD / SD SDI video output with digital audio embedded
  • Full control via front panel or Network Management Software (NMS)
  • Preset Channel List
  • Automatic channel change between two channels
  • Software upgradeable via NMS
  • BISS and BISS-E decryption

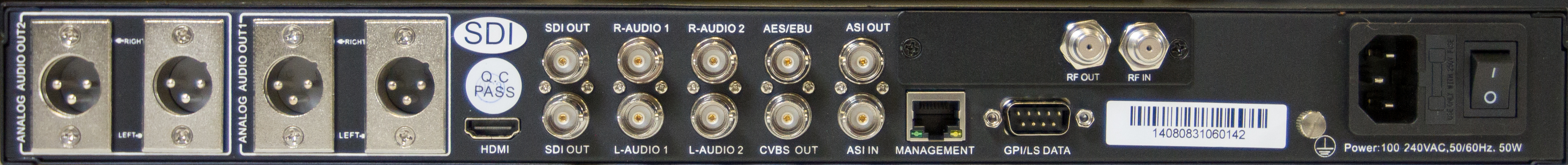

Rear Panel:


Specifications:


 DVB-S / S2 Inputs
Constellation:  QPSK, 8PSK
Symbol Rate:  1-45 Mbps
FEC:  All rations compliant with standard
Signal Level:  -65 ~ -25 dBm
 DVB-ASI Input
Connector:  1 x BNC 75 ohm
Packet Length:  188 and 204 byte packets
TS Max bitrate:  72 Mbps
 Conditional Access
Interface:  2 x CI slots
CA Methods:  Multicrypt, Simulcrypt
CAS:  Conax, Irdeto, Viacess, Nagravision, etc.
Video / Audio Outputs
CVBS:  1 BNC
Component

HDMI:  1 x HDCP, 720p, 1080i, 1080p
HD/SD-SDI:  2 x with embedded digital audio
Audio:  1 x AES/EBU digital audio output
DVB-ASI Outputs
Connector:  2 x BNC 75 ohm
Packet Length:  188 byte packets
TS Max Bit Rate:  72 Mbps
Video and Audio Decoding
Video decoding formats:  MPEG-2 and MPEG-4, H.264, SD and HD
Video formats:  480i, 480p, 576i, 720p, 1080i, 1080p59, 1080p60
Analog output:  PAL, NTSC, SECAM
Audio decoding: MPEG1 Layer II
Dolby Digital (AC-3)
Dolby Digital Plus (E/AC-3)
AAC (MPEG2, MPEG4/HE v1,2 ,MPEG4/LC
Control & Monitoring
Local:  Front panel operation – LCD display, Control keys
Remote:  Remote Web-based management via Ethernet (TCP/IP)
Physical & Power
Input Voltage:  AC 90V ~ 240V, 50/60 Hz
Power Consumption:  30W
Dimensions: 1 RU 19 inch rack
19” (W) x 10.8” (D) x 1.7” (H)
484mm x 274mm x 44mm
Weight:  8.14 lbs. (3.7 Kg.)
Certifications:  FCC, CE, RoHS





We test and verify every receiver before we ship it out to our customers to insure it is performing according to it's design:



  • We verify video and audio output
  • We verify reception of vertical and horizontal channels
  • We test all USB ports

Click here to download DSR160ASI HD-IRD Manual.pdf


Click here to download GEOSATpro DSR160ASI HD-IRD Spec Sheet
