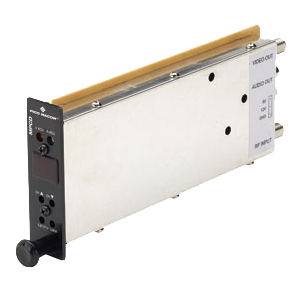

MMA860: Universal Chassis Mini Agile Modulator

Previously known as Pico Macom MMA860



Features



  • 135-channel range 54 MHz to 860 MHz (CATV 2-135), TV: CH 2 to CH 78 (54 MHz to 860 MHz)

  • > 45 dBmV min. adjustable output for optimum carrier-to- noise performance

  • Compatible with most manufacturers mini-modulator chassis

  • State-of-the-art digital Phase Locked-Loop (PLL) design guarantees precise frequency locking for solid drift-free operation

  • Microprocessor control enables quick digital pushbutton channel selection for ease of installation, configuration, and improved system uptime



  • SAW (Surface Acoustic Wave) filtered for superior adjacent channel performance enables drop-in channel expansion

  • In band carrier-to-noise ratio > 65 dB ensures superior picture quality

  • Automatic selection of aeronautical offsets (12.5 kHz, 25 kHz) for trouble-free configuration

  • Front panel access controls for easy set-up

Specifications

RF



AUDIO

FREQUENCY RANGE

NTSC 54 MHz to 860 MHz (CATV/TV)

INPUT LEVEL FOR 25 kHz

100 mVrms to 3 mVrms. Manual Gain Adjust with Front Panel

OUTPUT LEVEL

+45 dBmV

(min. -15 dB adjustment range)

PEAK DEVIATION

25 kHz

OUTPUT IMPEDANCE

75 Ω

INPUT IMPEDANCE

Greater than 10K Ω, Unbalanced

A/V RATIO

Audio Carrier Level, Adjustable from -8 dB to -35 dB (± 3 dB) Referenced to Video Carrier Level

VIDEO

VIDEO INPUT FOR 87.5%

0.6 Vp-p to 1.5 Vp-p. Manual Gain Adjust with Front Panel Control

CARRIER-TO-NOISE

(In Band)

62 dB

MODULATION

87.5%

CARRIER-TO-NOISE

(Out of Band)

65 dB

DIFF. GAIN

≤ 5%

DIFF. PHASE

≤ 5%

INTERCARRIER FREQUENCY

4.5 MHz ± 3.0 kHz

CHROMA/LUMA DELAY

Per FCC Requirements

SPURIOUS OUTPUTS

60 dBc Typical, Measured at -15 dB A/V Ratio and with Modulator Output Level of

+45 dBmV

INPUT IMPEDANCE

75 Ω



 Specifications

VIDEO (cont’d)

FREQUENCY RESPONSE

20 Hz to 4.2 MHz ± 1 dB

GENERAL

DC POWER INPUT

+12V ± 5% at 200mA Typical, 230mA Max.

+5V ± 5% at 320mA Typical, 380mA Max.

OPERATING TEMPERATURE

0°C to +50°C (+32°F to +122°F)

DIMENSIONS

3.5”H x 1.0”W x 7.5”D (8.89H x 2.54W x 19.1D cm)

WEIGHT

10.6 oz (0.3 kg)



Ordering Information



Part Number

Description

MMA860

Universal Chassis Mini Agile Modulator
