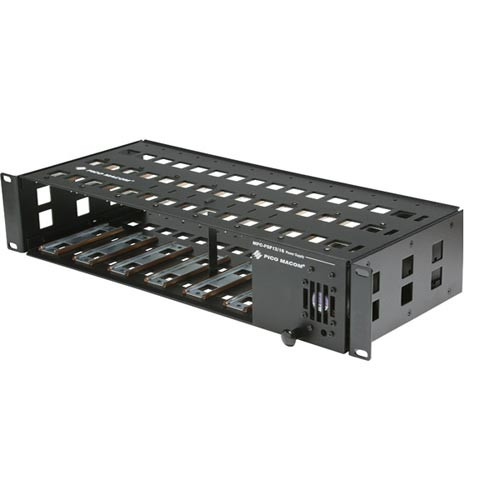

MPC-12 12-Slot Universal Mini-Mod Chassis with Power Supply
- High capacity fully regulated power supply provides the most efficient performance, ensuring reliability over a wide range of environmental conditions
- High efficiency power supply (over 70%) equipped with cooling fan minimizes power consumption and heat dissipation
- Current overload protection prevents damage to system and prolongs power supply life
- Internal fusing circuitry provides current overload protection and precise voltage regulation, preventing component damage
Includes:
MPC-12C Chassis
MPC-PSF12/16 Universal Power Supply Module
Specifications
Module Capacity | 12 |
Input Voltage Range | 90-240VAC |
Input Voltage Frequency | 47 - 63Hz |
Current Draw | 68 Watts Each |
Output Volt. (V1) @ 4A | 5VDC |
Output Volt. (V2) @ 4A | 12VDC |
Efficiency | 70% |
Line Load Regulation | ±1% |
Minimum Load | 10% |
UL Listed Power Supply | Yes |
Operating Temperature | 50 - 122°F |
Dimensions | 19˝ (L) x 7.5˝ (D) x 3.5˝ (H) |
Weight | 7.8 lbs |
