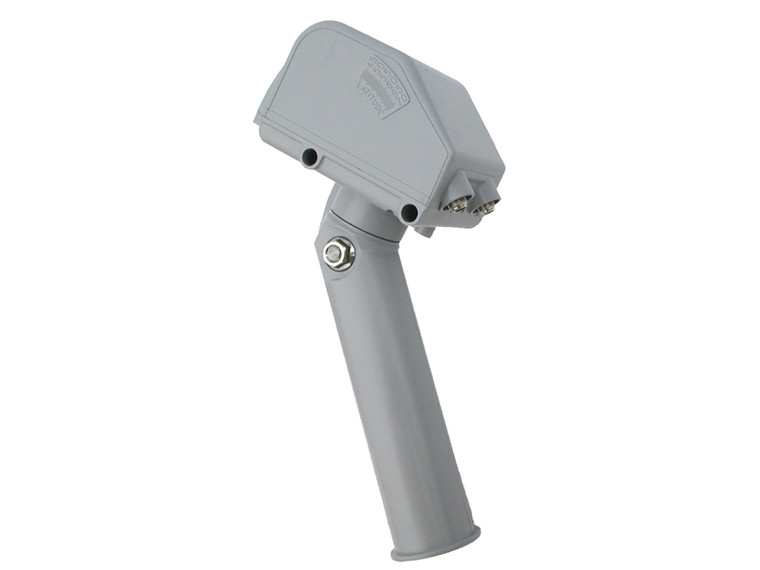

HH90 USALS | Satellite Antenna Rotor - Stab

Add to Wishlist
Current Stock:
size: 8.00 W × 6.00 H × 4.00 L
Weight: 5.74 LBS
Warranty: 60 days from the delivery date.
Shipping Cost: $26.50 (Fixed Shipping Cost)
Rotor SAT HH90 is a motor that enables any satellite dish with maximum diameter of 95 cm (40" DISH) to be pointed towards all visible satellites in the polar orbit.
Rotor SAT HH is directly controlled by DiSEqC1.2 or USALS compatible receivers, where the rotation of the motor automatically begins when selecting the required channel. For all those receivers not provided with DiSEqC, STAB has developed the interfaces MS220, MP01, MP02 to drive the motors only by Tv cable.


  • Lightness and rotation speed
  • Maximum precision
  • Connection without external feeding, only by coaxial cable
  • Reduced dimensions
  • Maximum ease of installation



Operating Protocol

DiSEqC 1.2

Maximum Antenna Diameter

95 cm

Maximum Antenna Weight

10 Kg

Pole Support Diameter

From 35 to 68 mm

Antenna Support Length

145 mm

Antenna Support Diameter

42 mm

Rotation Angle

  65 °

Rotation Speed

2.4 °/s (18V); 1.5 °/s (13V)

Operating Power Supply

13 / 18 Vdc

Consumption in Stand-by Mode

40 mA

Consumption in Operating Mode

180 mA

Starting Consumption (max)



6.3 W (Max.), 0.4 W (Min.) Stand-by

Operating Temperature

-40 °C +80 °C

Maximum Relative Humidity


Programmable Positions (DiSEqC 1.2)

49 satellites

Preset Positions (DiSEqC 1.2)

28 satellites

Programmable Positions (USALS)

No Limits




Satellite Coaxial Cable

Mechanical Limits

  72 °

Software Programmable Limits

From 5° to 62°

Fine Tuning

Impulse 0.1 °

Pole Inclination

From 10 ° to 70 °


2.6 kg


Unit has 60 days warranty from the date of delivery to customer.
