size: 16.00 W × 5.00 H × 21.00 L
Weight: 20.00 LBS
Shipping Cost: $39.50 (Fixed Shipping Cost)

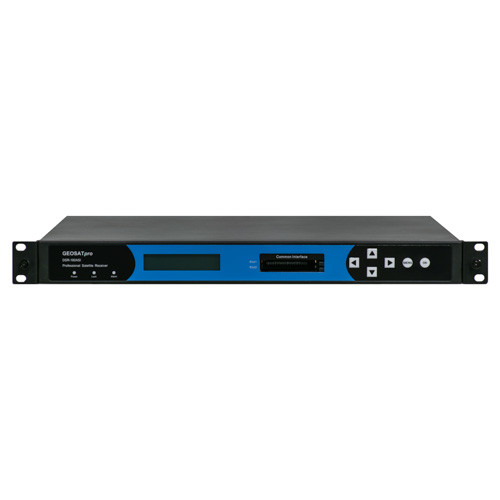

The GEOSATpro DSR180ASI IRD integrated receiver with 708 Closed Captioning decodes both high definition and standard definition video. The DSR180ASI is capable of receiving signals from variable program sources including DVBS, S2, DVB-ASI, QPSK and support for 4:2:0 chroma. Output interfaces include CVBS, HDMI, AES/EBU HD/SDI, 2xASI and IP. - Please choose upgraded DSR180QAM model to include additional features that include Full UHD and 4K decoding.

The DSR180ASI has 2 common interface slots capable of decrypting multiple channels. With the LAN control and monitoring function by remote web-based management and front panel controls, this user-friendly decoder is ideal for signal conversion and distribution for SD or HD-based digital video head-end system.


  • Fully compliant with H. 264/MPEG-4-AVC HP@L4, MPEG-2 MP@HL, MPEG-2 MP@ML and DVB-S/S2, support for 4:2:0 chroma and ASI/IP transport stream input and output
  • 2 Common Interface (CI) for descrambling major CAS including Irdeto, Viaccess, Conax, Mediaguard, Nagravision, Comvenient / Betacrypt, CTI, etc.
  • BISS and BISS-E decryption
  • Compatible with Multi-decrypt CI Modules
  • Program filtering support (choose what channels are eliminated from ASI or IP mux)
  • Closed Captioning via EIA-608 and EIA-708, VBI teletext, EBU subtitle and DVB subtitle processing (note if full EIA-708 digital Closed Captioning support is not required on SDI, choose less expensive DSR160ASI model)
  • Support NTSC, PAL and SECAM
  • Composite CVBS output
  • HDMI output
  • AES / EBU Digital Audio output (with optional breakout cable)
  • HD / SD SDI video output with digital audio embedded (SDI includes 708 CC)
  • 4k and UHD Video pass through ASI and IP (not donwconverted)
  • 4k passthrough to IP out.
  • IP I/O includes 480i/p, 720p, 1080i59/60, 1080p59/60, 2160p (4k no monitor out, no downconverting, only passthrough)
  • Full setup may require web interface login via Network Management Software (NMS)
  • Preset Channel List
  • Automatic channel change between two channels
  • Software/Firmware upgradeable via NMS

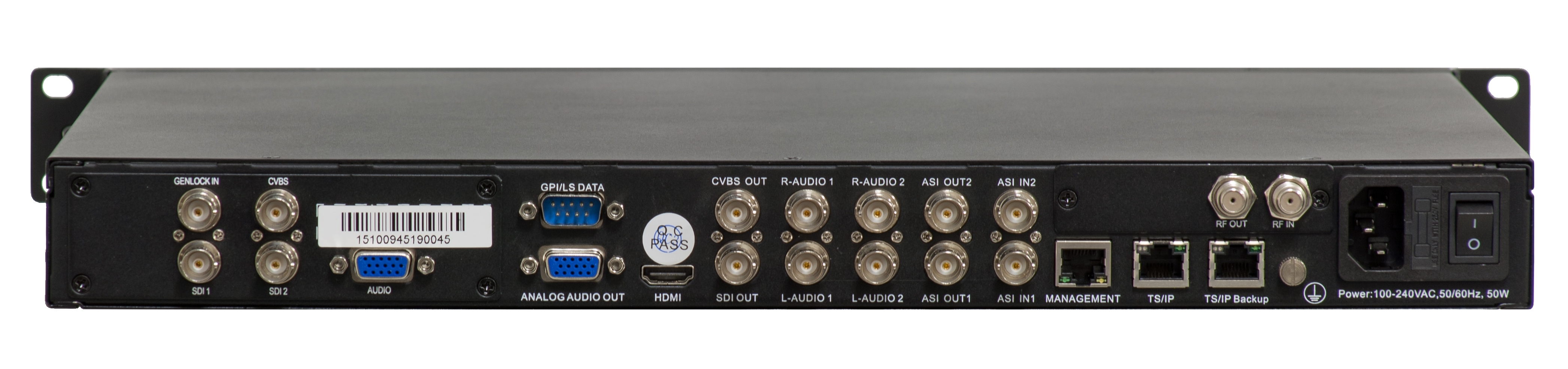

Click on image below to download Larger image of a Rear Panel:
DSR180ASI Rear panel



 DVB-S / S2 Inputs
Constellation:  QPSK, 8PSK
Symbol Rate:  1-45 Mbps
FEC:  All rations compliant with standard
Signal Level:  -65 ~ -25 dBm
 DVB-ASI Input
Connector:  2 x BNC 75 ohm
Packet Length:  188 and 204 byte packets
TS Max bitrate:  72 Mbps
 Conditional Access
Interface:  2 x CI slots
CA Methods:  Multicrypt, Simulcrypt
CAS:  Conax, Irdeto, Viacess, Nagravision, etc.
Video / Audio Outputs
CVBS:  1 x 1 BNC (Composite)
HDMI:  1 x HDCP, 720p, 1080i, 1080p
HD/SD-SDI:  2 x with embedded digital audio + 2 x with 708CC
Audio:  1 x breakout with balance and  digital audio output
DVB-ASI Outputs
Connector:  2 x BNC 75 ohm
Packet Length:  188 byte packets
TS Max Bit Rate:  72 Mbps
Video and Audio Decoding
Video decoding formats:  MPEG-2 and MPEG-4, H.264, SD and HD
Video formats:  480i, 480p, 576i, 720p, 1080i, 1080p59, 1080p60
Analog output:  PAL, NTSC, SECAM
Audio decoding: 2 stereo pairs audio decoding
MPEG-1 and MPEG-2 Layer I and II
Control & Monitoring

Front panel operation – LCD display, Control keys

Signal RF level and Carrier to Noise displayed on front.

Remote:  Remote Web-based management via Ethernet (TCP/IP)
Physical & Power
Input Voltage:  AC 90V ~ 240V, 50/60 Hz
Power Consumption:  30W
Dimensions: 1 RU 19 inch rack
19” (W) x 10.8” (D) x 1.7” (H)
484mm x 274mm x 44mm
Weight:  8.14 lbs. (3.7 Kg.)
Certifications:  FCC, CE, RoHS

We test and verify every receiver before we ship it out to our customers to insure it is performing according to it's design:

  • We verify video and audio output
  • We verify reception of vertical and horizontal channels

Click here to download GEOSATpro DSR180ASI 708CC HD-IRD Manual.pdf

Click here to download GEOSATpro DSR180ASI 708CC HD-IRD Spec Sheet
