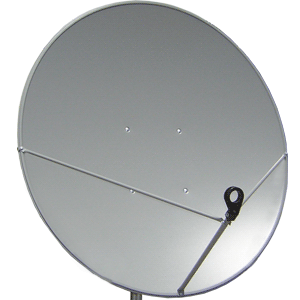

GeoSatpro 1.2 Meter KU OFFSET DishAdd to Wishlist
Designed and Built to Provide Years of Dependable Reception in Extreme Elements
Heavy Duty 3 inch Dual U-Bolt Mounting Bracket Suitable for Post or Motor Mounts / Easily inverted for use with top loading motor mounts
Efficient / High Gain Reflector
Perfect for Fringe Area Reception of Weak Signals (outperforms Channel Master and all Competitor Designs)
C-Band LNB mount available C-band LNBF Mount
Durable and Attractive Grey Textured Finish
Single Box Packaging suitable for Residential Delivery
Bulk Quantity Pallet Delivery Available
GEOSATpro 1.2M inverted mount on a dish motor with 55mm Tube
Two units can be shipped together in one shipping box with no increase in freight cost. A carton fee of $25 (carton, packaging, and strapping) is included in the item price. The average cost of shipping is $151 or less to most US addresses. If this item is purchased in bulk, the included $25 shipping carton charge is removed. Bulk orders will be shipped by pallet and a pallet fee of $50 will be applied. Please call for heavy weight freight or international shipping quotes. The individual shipping carton dimensions are 58" x 52" x 9" and weight is 52 lbs. Two dishes can be shipped in one carton with a weight of 78 lbs.
* The online shipping quote cannot be guaranteed on this oversize ground freight item. You may be contacted within one business day with an adjusted final shipping quote.
Retail cost for local pickup is $175 with shipping box or $135 without box (Due to coronavirus we are unable to offer local pick up until further notice)
|Antenna Size||1.2 Meter (48 Inches)|
|Offset Angle||27.3 deg.|
|Horizontal Axis||120 cm (47.24 in)|
|Vertical Axis||135 cm (53.15 in)|
|Assembled Weight||12.25 kg (27 lbs)|
|Gain @ 12.5 GHz||43dB|
|Focal Length||60 cm (23.62 in)|
|Mount Type||U-Bolt Az / El with Fine Tuning Adjustment|
|Elevation Adjustment||15 - 90 deg.|
|Mast Diameter||Minimum: 55mm (2.16"), Maximum 76 mm (3")|
|Operating Temperature||-40 C - +60 C|
|Operational Wind Speed||90 km/H (56 mph)|
|Survival Wind Speed||180 km/H (112 mph)|
|Finish||Texture Polyester Powder Coating|
|LNB Mount Type||Universal 40 mm / 23 mm clamp|
Download Assembly Diagram
|Custom 1.2M Carton Suitable for Shipping
1 or 2 Dishes with Accessories
|58" x 52" x 10"
52 lbs - 1 unit / 82 lbs - 2 units
Customer is responsible to inspect the goods upon arrival and for immediate claims.
Customer has to mark the claims on the delivery receipt, otherwise they are responsible for the damage.
SatelliteAV is not responsible for claims that are not reported to the delivery man upon arrival.
